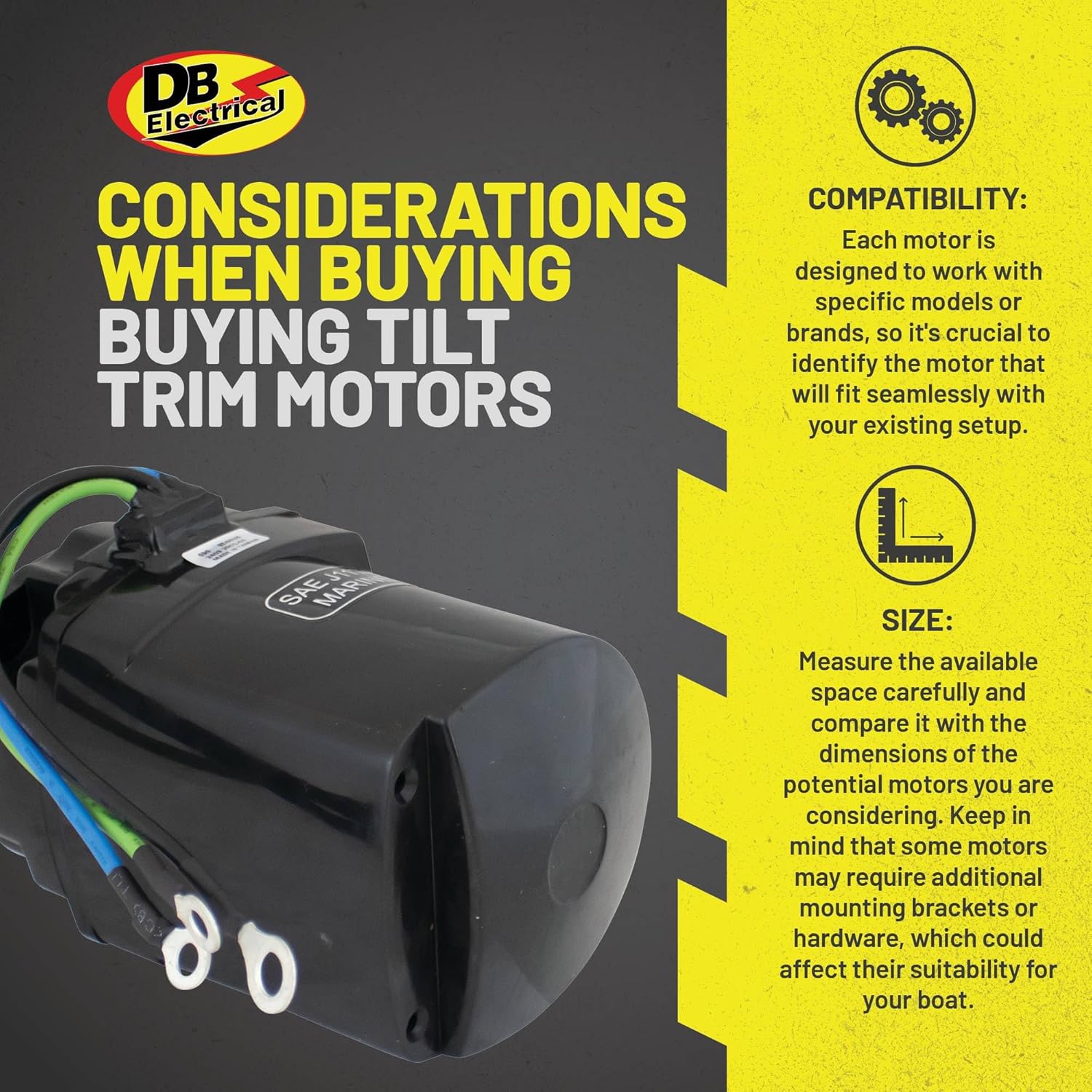

DB Electrical 430-22005 Tilt & Trim Motor Compatible with/Replacement for Mercury Marine 3.4 ELPT 1984-1987, 3.4 EXLPT 1984-1987, 175ELPTO 1988, 175EXLPTO 1988, 250XL 1989 17649A02, 17649A1, 10822MN
4.8 (122 items)
Limited Time SaleUS$53.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228712111 | Release Date | 2026/05/31 | List Price | US$35.86 | Model Number | 228712111 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Aftermarket Mercury Generator Specifications: Voltage:12 Volts Rotation:Reversible Field Hsg OD:91.8mm / 3.614in Overall Length:170.5mm / 6.713in Shaft OD:9.6mm / 0.378in Shaft Notes:3.8mm Thick Tang New or Remanufactured:New Approximate Weight:6.325 lbs / 2.87 kg Notes: Includes (3) 178mm Long Leads With Ring Terminals Late Style-Will Replace Early Style Applications: MERCURY Marine: TILT & TRIMAll Models Various For Mercury Marine 1988 175ELPTO & 175EXLPTO, 1988 200ELPTO & 200EXLPTO, 1989 250XL, 250XXL, & 275XL, API PT500NM-2, PT502RM; Arco 6218; Arrowhead TRM0008, 430-22005; Barsanco 540-023; Cargo 111862; Dixie TM-516; EMP 4-6722; EMS 49-0008; J & N 430-22005; Lester 10822M; Mallory 9-18207; Mercury Marine 17649A02, 17649A1 & 87828; MES T1087M, T1087M-OE; Minnpar 67-2805; MP 4-1252; PIC 107-122M; Protorque PH200-T015; RCP 26260A; Sierra 18-6722; WAI 10822MN, 82-6857; Wilson 74-35-10822M
- Specs: Description: Tilt & Trim Motor, Voltage: 12, Rotation: RE
- Replaces OEM Numbers: Mercury Marine 17649A02, 17649A1, 87828, MES Motorcycle & Marine T1087M, T1087M-OE, Sierra Marine 18-6722, Wilson Small Engine 74-35-10822M, WAI 10822MN , WAI (OLD) 82-6857, Remy Small Motor RT05004, RCP 26260A, Protorque PH200-T015, NAPA Small Motor RN10822M, P264N, MP PARTS 4-1252, MINNPAR 67-2805, Mallory 9-18207, API MarinePT502RM, PT500NM-2
- Compatible With/Replacement For: Mercury Marine 3.4 ELPT, 3.4 EXLPT 1984-1987, 175ELPTO, 175EXLPTO, 200ELPTO, 200EXLPTO 1988, 250XL, 250XXL, 275XL, 275XXL 1989
- 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
- 100% New aftermarket Tilt & Trim Motor built to meet OEM specifications for Mercury Marine
| UPC | 701485537646 |
|---|---|
| ASIN | B019GUJVEK |
| Model | 430-22005 |
| Speed | 1650 RPM |
| Voltage | 12 Volts |
| Brand Name | DB Electrical |
| Horsepower | 12 Watts |
| Model Name | 430-22005 |
| Item Weight | 5 Pounds |
| Part Number | 430-22005 |
| Manufacturer | DB Electrical |
| Material Type | Plastic |
| Item Type Name | Boat Tilt and Trim Motor |
| Included Components | Tilt Trim Motor |
| Warranty Description | 1 Year |
| Global Trade Identification Number | 00701485537646 |
