Hollow Rotary Actuator High Accuracy Hollow Rotating Platform Rotary Positioners, Fitting Nema 23 Stepper Motor, Substitutable for Direct Drive Motor and Cam Indexer

PGFUN Hollow Rotary Actuator High Accuracy Hollow Rotating Platform More Features: The rotary actuator comes with a hollow design, while the stepper and servo motor could connect the actuator at the side, which is convenient to wire and add the air pipe, and non-considering twining problems. Directly connected with a stepper/ servo motor, compared with traditional rotary tables, it is available to support more stable rotating , and high-accuracy controlling and positioning, furthermore, it can save time and costs of mechanism design, complex table installation, belt adjustment and calibration, etc. High-quality Material: the actuator is made of 6061 aluminum alloy (with the blackening process), high-accuracy gears, high rigidity crossed roller bearings and shafts, which support longer service life. Specifications: Rotating Table Outer Diameter: 130 mm/ 5.12 inch Reducing Ratio: 10:1 Max.Torque: 52 NM Bearing of Rotating Table: Crossed Roller Bearing Moment of Inertia: 15870*10^(-6) kg.㎡ Max. Speed: 200 r/min Max. Load of Inertia: 72 NM Max. Axial Force: 2000 NM Positioning Accuracy: 1 arcmin Repeated Positioning Accuracy: 15 arcsec Parallelism of Rotating Table: 0.01 mm Concentricity of Rotating Table: 0.01 mm Service Life: 20000 h Degree of Protection: IP 40 Reference Loading (max): 20 kgs/ 44 lbs Fit for Motor: Nema 23 ( Shaft diameter: 8 mm/ 6.35 mm (1/4"), Mounting holes: 4 x M4 thread, and 47.14 mm apart., Pilot：38.1 mm ) Weight: 2.5 kgs/ 5.6 lbs Tips: The connecting flange could be changed to fit Nema 34 ( 14 mm shaft) stepper/ servo motor. (CONTACT US BEFORE PURCHASING) . If 3D files (stp or igs) is needed, free to connect us! The attached manual may help choose the right size actuator for your application.

• High Accuracy Rotating Platform: 1 arcmin positioning accuracy and 15 arcmin repeated positioning accuracy, which is dramatically growing in high-precision industrial automation equipment, glue dispensing machines, the 4th or 5th axis of machine tools, packing machines, photoelectric and visual inspection equipment, indexing plate, laser printer, sorting machine, robot joint, etc.

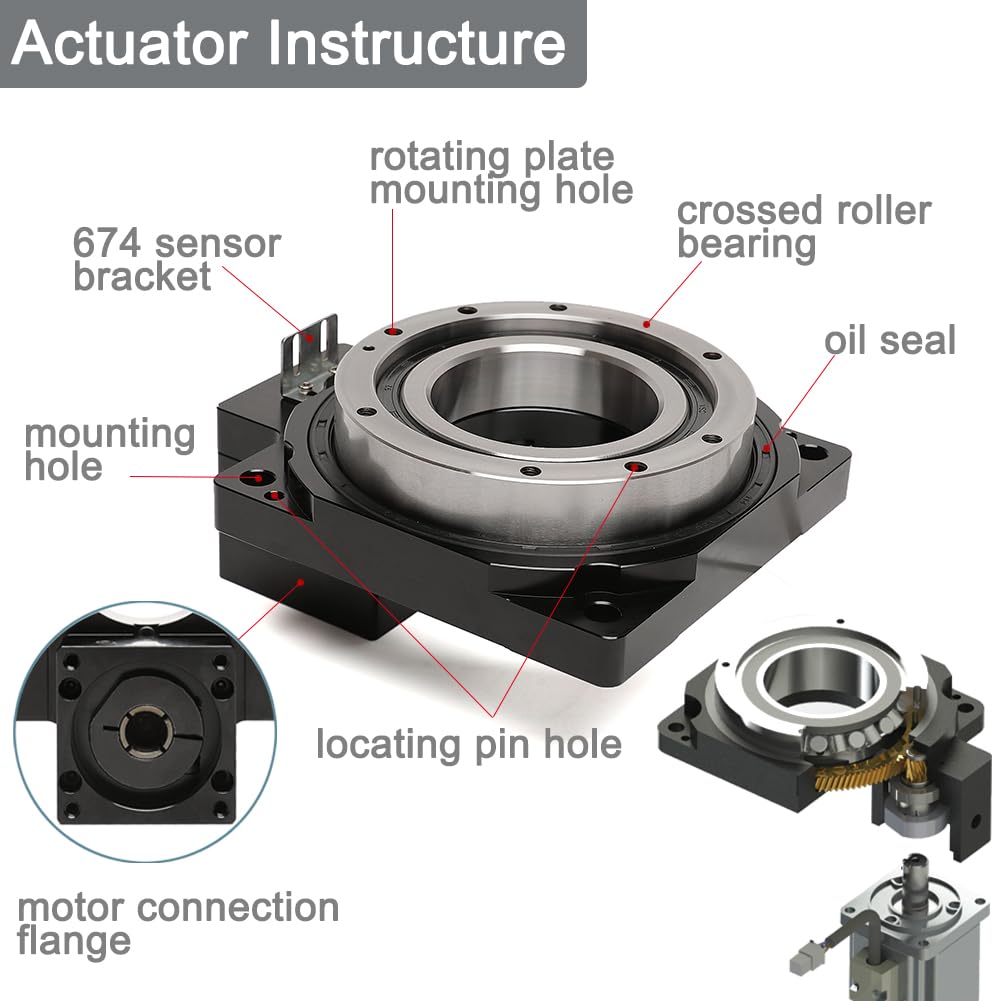

• 360-Degree Rotating Table with Hollow Design: it is easy to position and stay at any angle by connecting with a stepper motor or servo motor directly, the actuator comes with a photoelectric sensor (674) bracket to achieve high accuracy position and control, and the hollow design makes it easy to attach the rotating plate and avoid the complex wiring problem.
• Equipped with Crossed Roller Bearing: considering the accuracy and stability that may be affected by the lateral force from different directions, the high rigidity crossed roller bearing was adopted, which features high rotational accuracy, stable rotational torque, and high loading capacity, which can ensure the stability and high precision of the rotating platform.
• This DN130 Rotary Actuator Fits for Standard Nema 23 Stepper ( Shaft diameter: 8 mm/ 6.35 mm (1/4"), Mounting holes: 4 x M4 thread, and 47.14 mm apart., Pilot：38.1 mm ) in Default, and It Could Change the Connecting Flange to Fits the Nema 34 Motors (Please Know That We Can Provide Different Sizes Flange to Fits Most Stepper/ Servo Motors on the Market).
• To Know More Details About This Hollow Rotary Actuator/ Turntable, Please Refer to the Content in the Following Description Section and Attached Video Show. Any Questions, Free to Contact Us.
