Pinion Engine Gear,Tooth Gear,Motor Pinion Gear,2pcs Straight Bevel Gear 1.5 Module 15/20/25/30 Teeth Steel 90° Vertical Directional Drive Steering Gear M4 5mm 6 8 6.35 Bore G-S (Color : 1.5M, Size

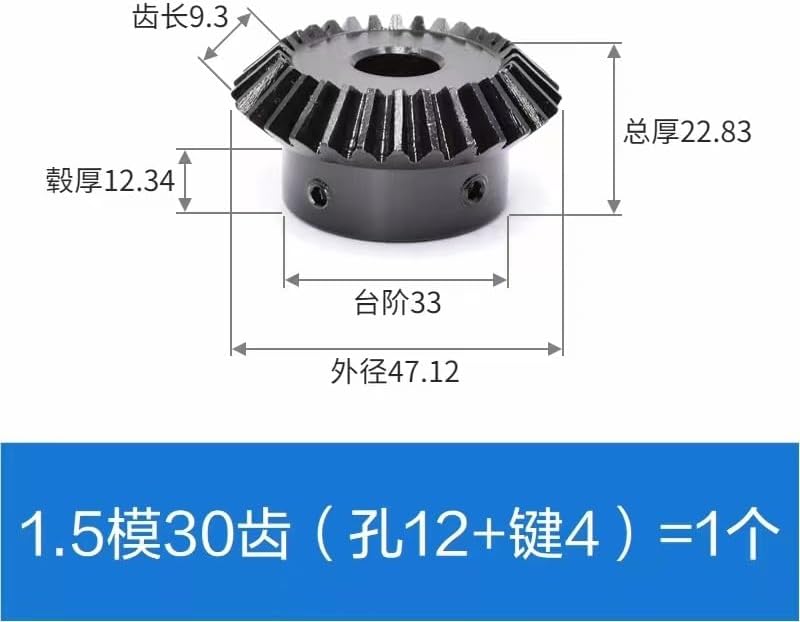

Modulus: 1.5 ModuleNumber of teeth: 16/20/25/30/ teethInner hole: As shown in the figureOuter diameter: As shown in the figureStep outside diameter: As shown in the figureTooth length:As shown in the figureTotal length: As shown in the figureUniform installation distance: 18mmFixing screw hole: M4 * 2The inner hole is finished, the tolerance is H8!Bevel gears are most commonly used to drive two vertical shafts, but are also adapted to drive two shafts at other angles.The inner hole is finished and the tolerance is H8.1: 1 45°, 2 gears travel 90°.UNIT:mmBevel gears transmit motion between intersecting shafts, while spur gears transmit motion between two parallel shafts.

• 90° Straight Bevel Gear 1.5M 25/30T, Some notes:
• 1. It can be used as a steering gear.
• 2. The shipping list is 2 pieces, which can be composed of 90 degrees.
• 3. Yellow is copper material, gray is steel material.
• Please check the size carefully before ordering.
